Rancher Bumper Hitch Livestock
Available Lengths
- 10', 12', 14', 16', 18', 20'
Available Paint Colors
 |
Birch Metallic |
 |
Chestnut Metallic |
 |
Deep Blue Metallic |
 |
Gunmetal Metallic |
 |
Stealth Gray Metallic |
 |
Desert Tan |
 |
Bright Red |
 |
Construction Yellow |
 |
Deep Green Metallic |
 |
Implement Orange |
 |
Super White |
 |
Vibrant Green |
 |
Bright Silver Metallic |
 |
Dark Gray Metallic |
 |
Deep Red Metallic |
 |
Jet Black |
 |
Battleship Gray |
Available Pin Striping Colors
 |
Silver |
 |
Gold |
 |
Black |
 |
Maroon |
 |
White |
 |
Green |
 |
Charcoal |
 |
Blue |
 |
Red |
Estimated Weights
| Length | No. Center Gates | Axles | Est. Base Weight |
|---|---|---|---|
| 10' | 0 | 2 x 6000# | 3220# |
| 12' | 0 | 2 x 6000# | 3450# |
| 14' | 1 | 2 x 6000# | 3660# |
| 16' | 1 | 2 x 6000# | 3840# |
| 18' | 1 | 2 x 6000# | 4200# |
| 20' | 1 | 2 x 6000# | 4510# |
Standard Features
4' Tall - 14ga.Corregated Sides
2" x 5" Tubing Frame

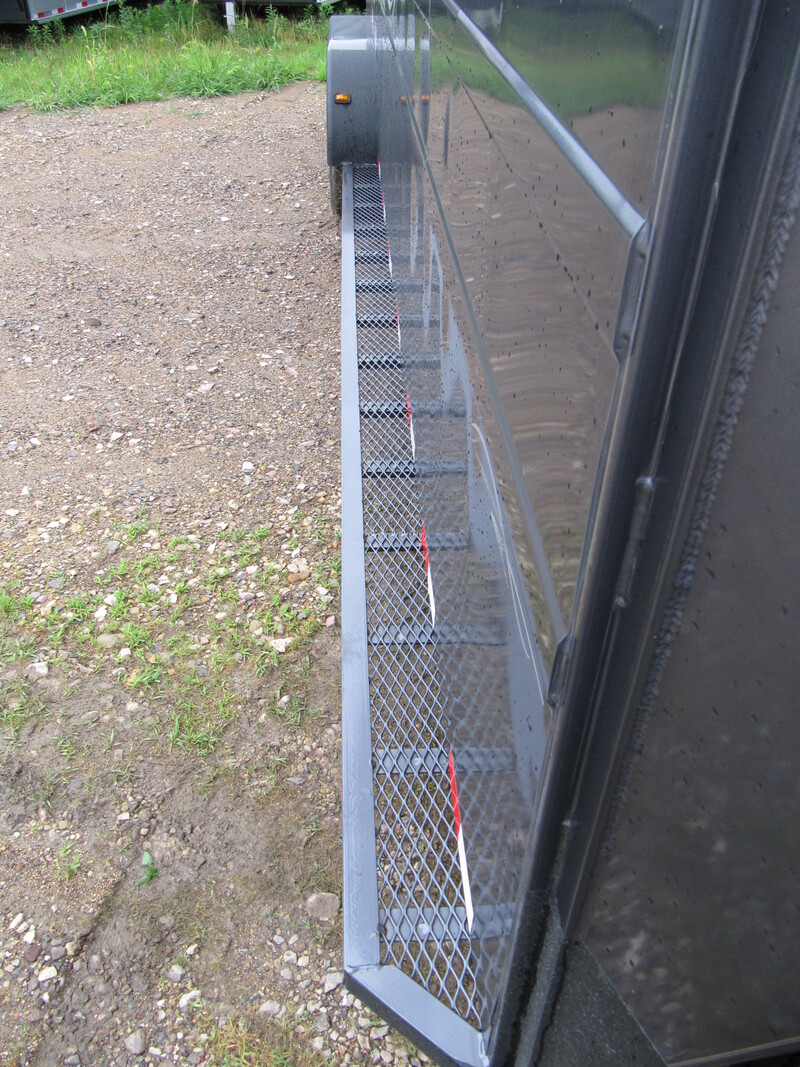

8" Running Boards w/ Expanded Metal
6’6” Inside Height
6'8" Wide
Electric Brakes on all 4 Wheels
Escape Door on Passenger Side
Crossmembers, Uprights & Roof Bows on 16” Centers (when applicable)
Back Gate w/ 1/2 Slide, Slam Latch & Butterfly Latch
Spare Tire
Torsion EZ Lube Axles
Spray on Gravel Guard
6 Bolt Hubs
Undercoating Inner Fenderwells
2-5/16” Coupler
Rubber Rear Bumper
Battery Box w/ Battery & Breakaway Switch

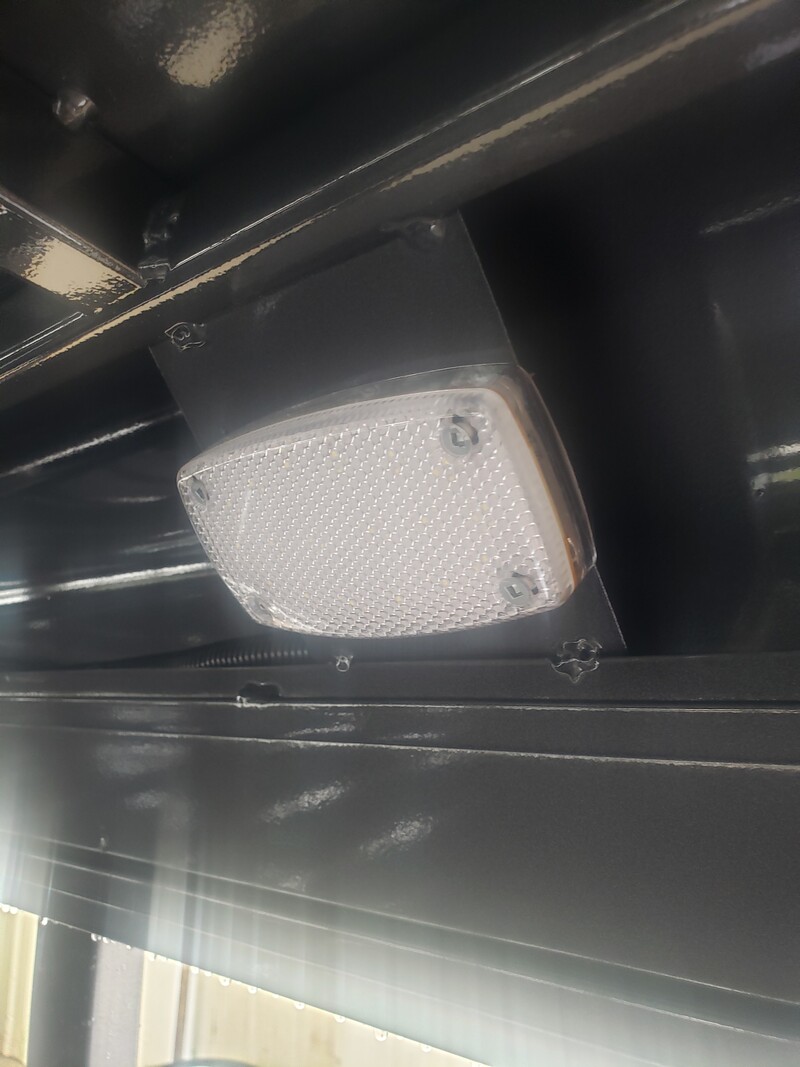

Sealed Beam Recessed L.E.D. Lights
7-Prong Heavy Cord w/Junction Box
Breakaway Battery Box with Charger and Tester
Rectangle Tube in Lieu of Upper Slats for Improved Access
Reflective Tape on Trailers over 10000# GVWR
Notes
- ANY TRAILER OVER 20’ WILL NEED AN APPROVAL AND A QUOTE FROM THE FACTORY
- STANDARD FEATURES SUBJECT TO CHANGE AT MANUFACTURERS DISCRETION
- WEIGHTS MAY VARY ACCORDING TO OPTIONS
Optional Features
Sides & Windows
Split Escape Door
Bull Package (Cross Members, Uprights & Roof Bows on 12” Centers)
Cross Members only on 12” Centers
Uprights only on 12” Centers
Height & Width Options
7’ Tall
7 ½’ Tall
8' Tall
8 ½’ Tall
9' Tall
7 ½’ Wide
8’ Wide
Lights & Trim
Illuminated Titan Hat Nose Graphic
Illuminated Name Plate on Nose
LED Back-Up Lights
Double Tail Lights
Extra Clearance Light
Top Clearance Lights at Rear
Mid-Mount LED Turn Signals (Per Pair)
6 Prong Plug
7-Way Plug with Cold Weather Cord (Stays Flexible during Winter)
Semi Plug with Double Tail Lights
Wire Plug to Receiver Hitch
Extra Elite Shield (Line X Equivalent) Gravel Guard (Per Square Foot)
Doors, Windows, Vents, & Ramps
Extra Escape Door
48" Wide Escape Door
54" Wide Escape Door
Screened Camper Door w/ Vertical Window (Will not work with a Swingout Saddle Rack)
Aluminum Fold Down Rear Ramp w/ Double Doors Above
Aluminum Fold Down Rear Ramp Behind Back Door(s)
4’ Aluminum Side Ramp with Door Above
5' Aluminum Side Ramp with Door Above
6' Aluminum Side Ramp with Door Above
2-Way Pop Up Roof Vent
Dome Style Roof Vent with 12V Fan
16”x24” Vertical Window w/Slide in Factory Steel Door
30”x30” Bus Window w/ Slide
12”x24” Bus Window w/ Slide
18”x24” Bus Window w/ Slide
Aluminum Options
Aluminum Tread Bright Gravel Guard Package
Center Gate & Back Gate Options
Upgrade to Sliding Center Gate from Standard Center Gate
Extra Center Gate
Extra Sliding Center Gate
Extra Gate Setting
Floating Center Gate (Set on 6" Adjustments - Will Latch Ahead of Escape Door)
Delete Center Gate
One Piece Slatted Back Gate
Slatted Double Back Doors w/ Cam Locks and Lockable Hasps
Anti-Sag Block on Center Gate in Open Position
Outside Center Gate Release to Shut Gate
Beef Up Center Gate with Extra Tubing
Beef Up Center Gate with Extra Tubing and Tube Post on Hinge Side
Compartments & Dividers
Permanent Rear Tack w/ Double Back Doors
Collapsible Rear Tack
Mid-Tack Full Width Behind Dress Wall w/ Door
Mid-Tack in Corner of Dress Room w/Door
Stud Gate (not telescopic, Slant Center Gate)
Slant Divider
Hang Rubber Mat from Bottom of Divider
Divider Extension
Solid Dressing Room Wall w/ Factory Steel Door & Sub-Floored
Swing Wall w/ Sides Enclosed to Front
Bi-Fold Swing Wall w/ Sides Enclosed to Front
Swing Wall w/ Sides Not Enclosed
Bi-Fold Swing Wall w/ Sides Not Enclosed
Axles (Non-Standard Axles may increase lead time)
Spring EZ Lube
Oil Bath Hub (Per Axle)
Surge Brakes
Single 7000# Torsion EZ Lube w/ 10 ply Tires
7000# Torsion EZ Lube
Tires (Goosenecks)
Jacks
5K Topwind Jack (in Lieu of 2K) in A-Frame Coupler
Double 12,000# Dual Pin Jacks
2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Double 2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Single Bulldog Velocity Series 12,000# Electric Jack (Includes Battery & Battery Tray)
Double Bulldog Velocity Series 12,000# Electric Jack (Independent Control, Includes Battery and Battery Tray)
Single Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Double Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Flooring Options
Sure Foot Flooring (Rubber Floor System - Self Draining)
Blackwood Rubber Infused Lumber
Rubber Composite Flooring (Includes 12" Cross Members)
Tread Rubber in Lieu of Wood (Per Foot)
Rubber Floor Mats
Dressing Room/Tack Room Options
3 Tier Saddle Rack
4 Tier Saddle Rack
Extra Saddle Rack Setting
Swingout Blanket Bar (6 Tier)
Removable Bridle Hook Bar (4 Bridle Hooks)
Extra Bridle Hook
Extra Tie Loop
Extra Blanket Bar
Full Width Boot Box - Oak with Titan Logo
1/2 Boot Box - Oak with Titan Logo
Electrical Package - 30A Cord, Breaker Box and 1 Outlet
Additional Outlets
13,500 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
15,000 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
Carpet Package
Horse/Stock Area Options
Buggy Ramps
Padded Stall
Undercoat Inside Roof
Undercoat Underneath of Trailer
Undercoat Inside Walls 20" Up
Miscellaneous Options
Tie Rail On Side
Receiver Hitch
Camper Step
Panel Hooks
Skid Plate on Rear Bumper
Battery Tray
12 Volt Deep Cycle Battery
Aluminum Battery Box
Plastic Battery Box
Propane Tray
Awning
Block Axles up 2"
Extend Tongue 12"
Plate/Beefed-Up Rear Corners - Standard on 24' and Above
EZ Jack Mounted Under Spare Tire
