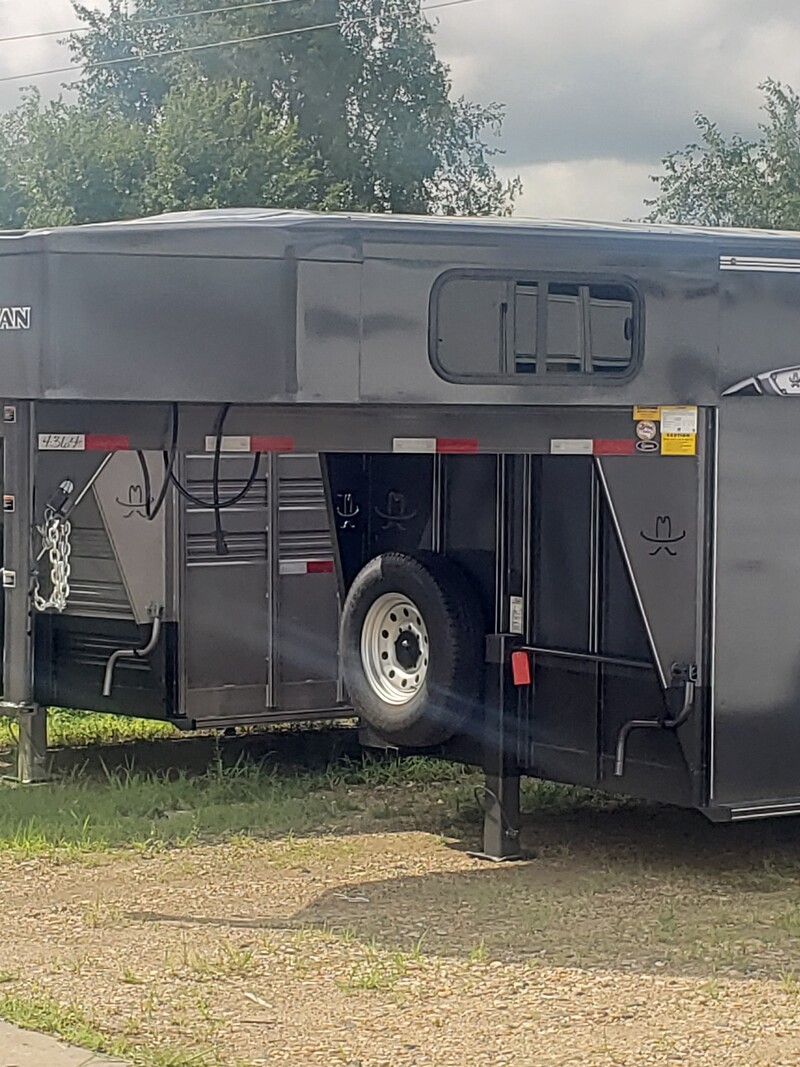

Classic Gooseneck Livestock
Available Lengths
- 10', 12', 14', 16', 18', 20', 22', 24', 26', 28', 30', 32'
Available Paint Colors
 |
Birch Metallic |
 |
Chestnut Metallic |
 |
Deep Blue Metallic |
 |
Gunmetal Metallic |
 |
Stealth Gray Metallic |
 |
Desert Tan |
 |
Bright Red |
 |
Construction Yellow |
 |
Deep Green Metallic |
 |
Implement Orange |
 |
Super White |
 |
Vibrant Green |
 |
Bright Silver Metallic |
 |
Dark Gray Metallic |
 |
Deep Red Metallic |
 |
Jet Black |
 |
Battleship Gray |
Available Pin Striping Colors
 |
Silver |
 |
Gold |
 |
Black |
 |
Maroon |
 |
White |
 |
Green |
 |
Charcoal |
 |
Blue |
 |
Red |
Estimated Weights
| Length | No. Center Gates | Axles | Est. Base Weight |
|---|---|---|---|
| 10' | 0 | 2 x 6000# | 3340# |
| 12' | 0 | 2 x 6000# | 3780# |
| 14' | 1 | 2 x 6000# | 4120# |
| 16' | 1 | 2 x 6000# | 4480# |
| 18' | 1 | 2 x 7000# | 4880# |
| 20' | 1 | 2 x 7000# | 5280# |
| 22' | 1 | 2 x 7000# | 5720# |
| 24' | 2 | 2 x 7000# | 6160# |
| 26' | 2 | 2 x 7000# | 6580# |
| 28' | 2 | 2 x 7000# | 7020# |
| 30' | 2 | 2 x 7000# | 7400# |
| 32' | 2 | 2 x 7000# | 7780# |
Standard Features
Slope Nose
Outside Skin (Galvannealed)
Double Lined With Galvannealed Steel
6’6” Inside Height
6'8" Wide

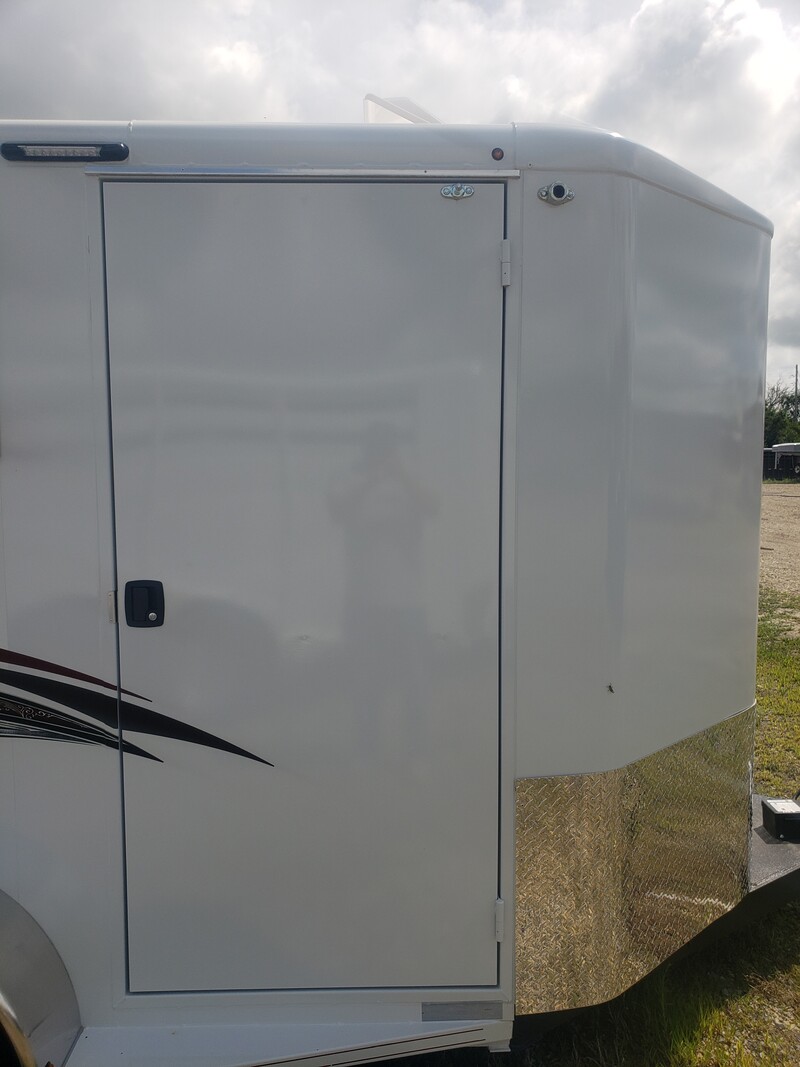

Escape Door on Passenger Side
Electric Brakes on all 4 Wheels
Crossmembers, Uprights & Roof Bows on 16” Centers (when applicable)

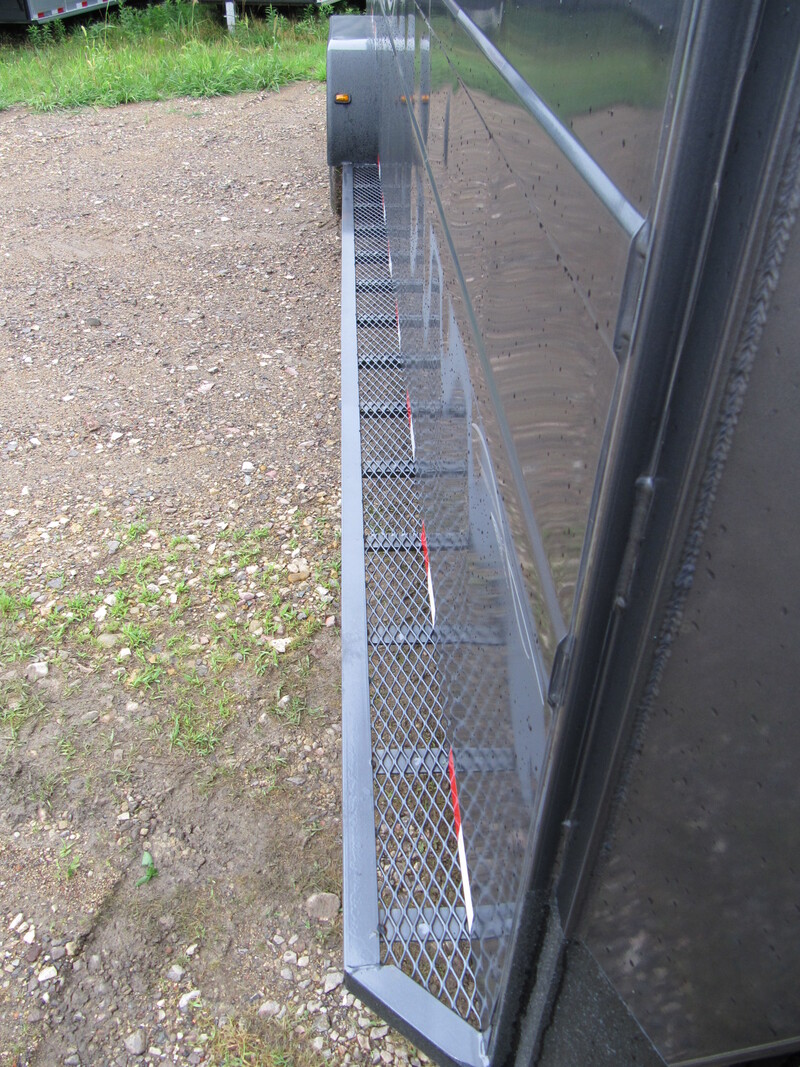

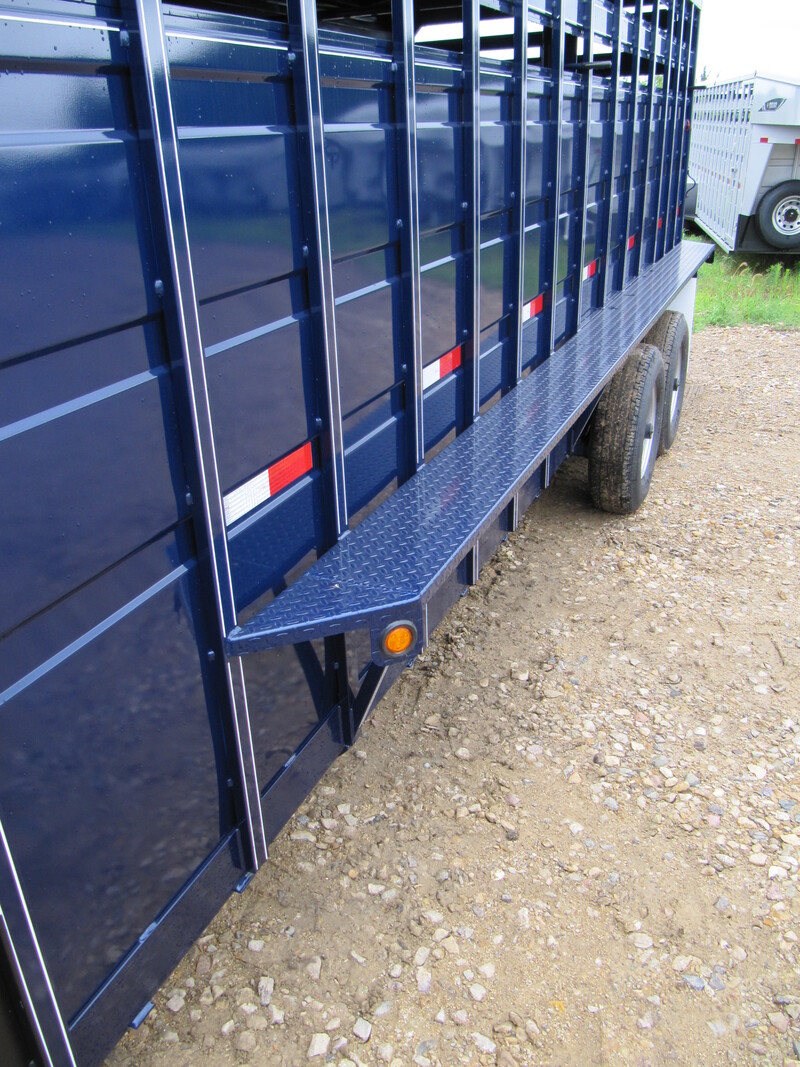

Extended Angle Iron Running Boards
3” x 5” Frame

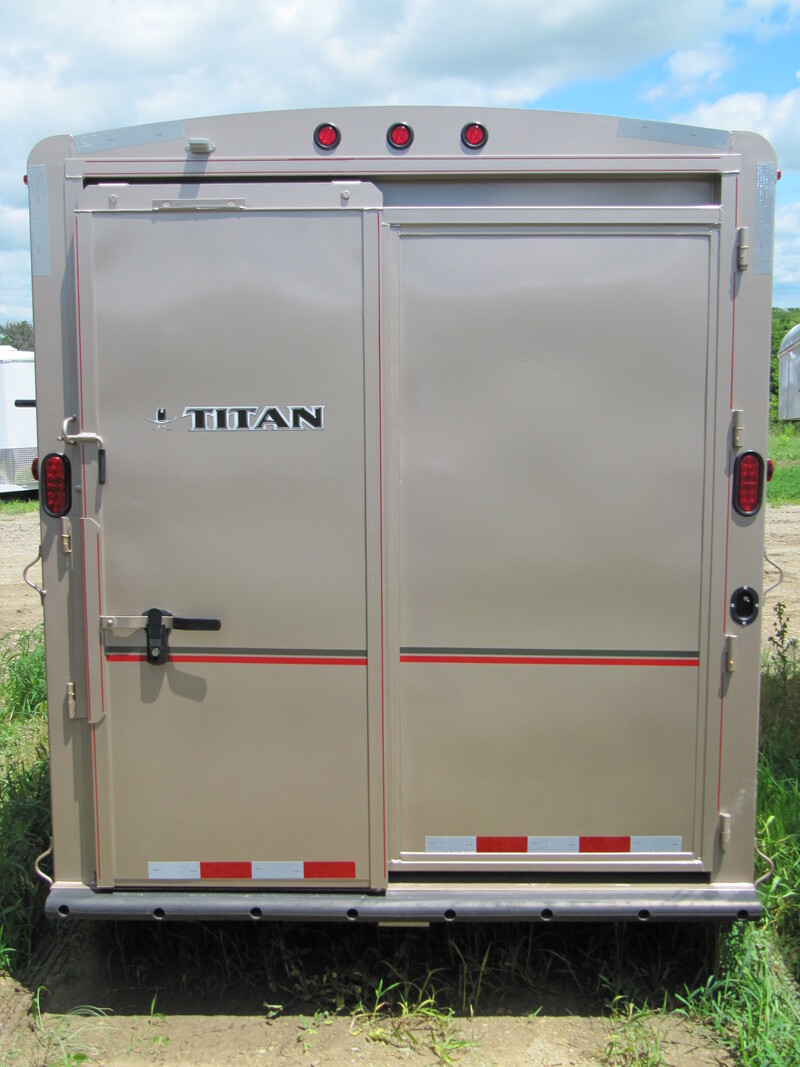

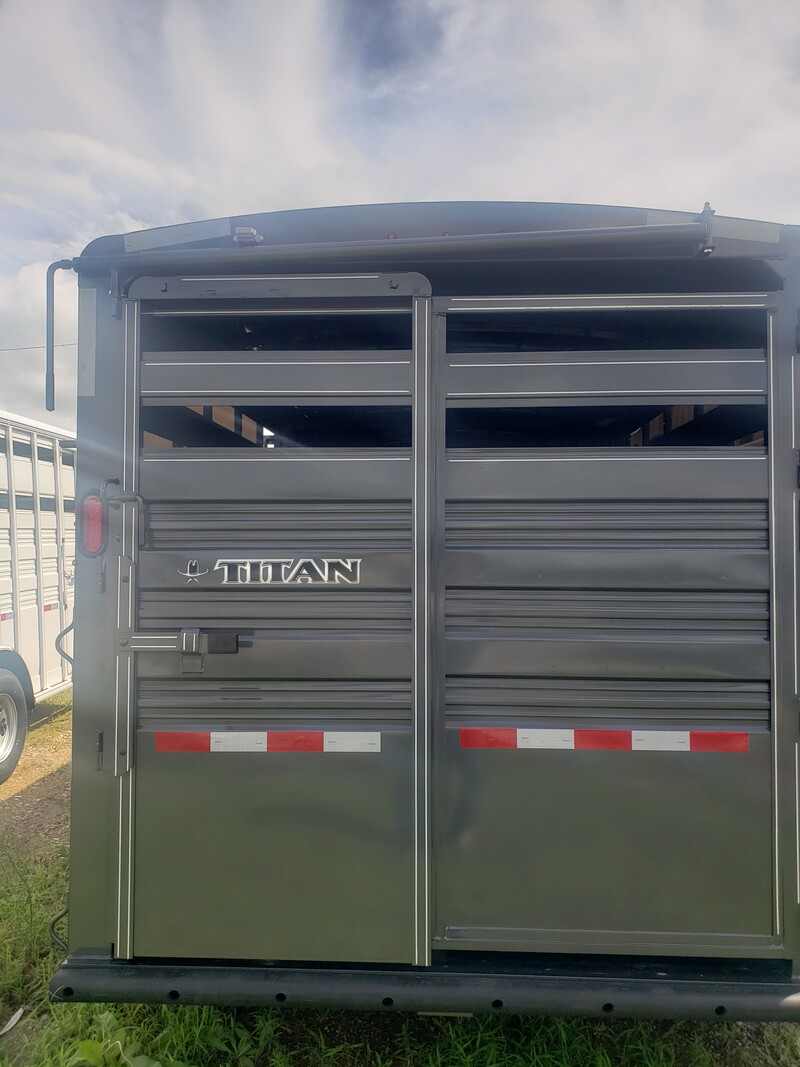

Back Gate Slatted w/ 1/2 Slide, Slam Latch & Butterfly Latch
Spray on Gravel Guard

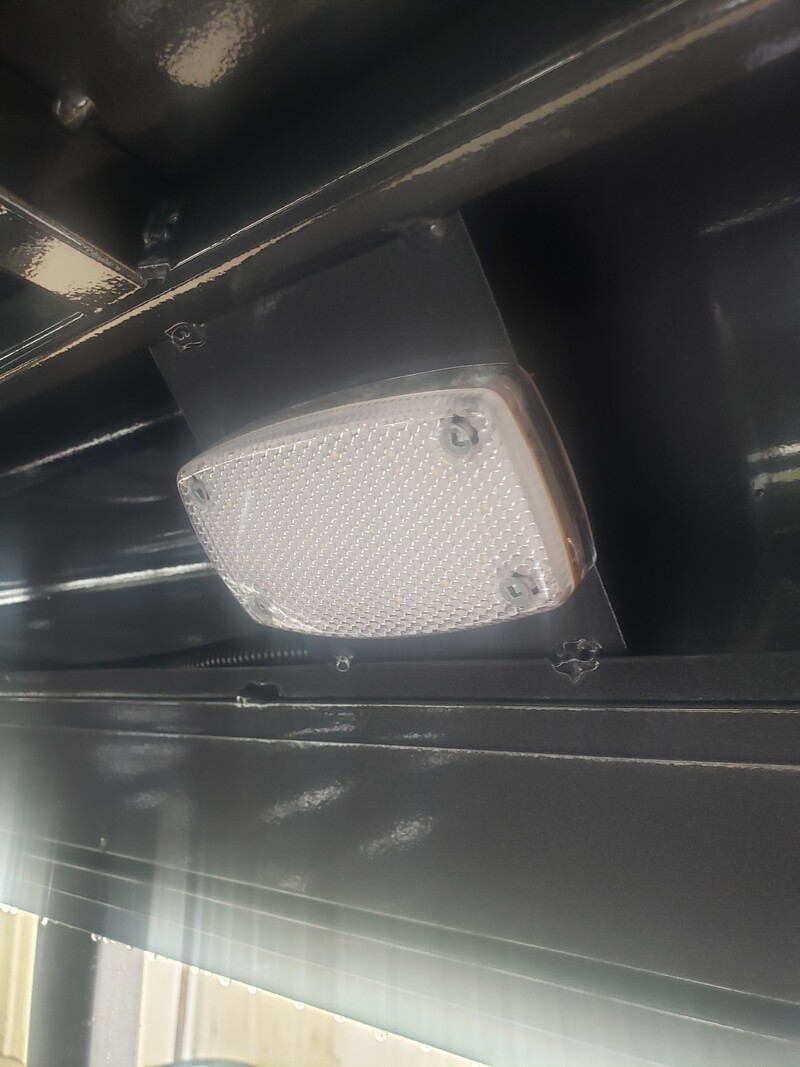

Sealed Beam Recessed L.E.D. Lights
Undercoat Inner Fenderwells

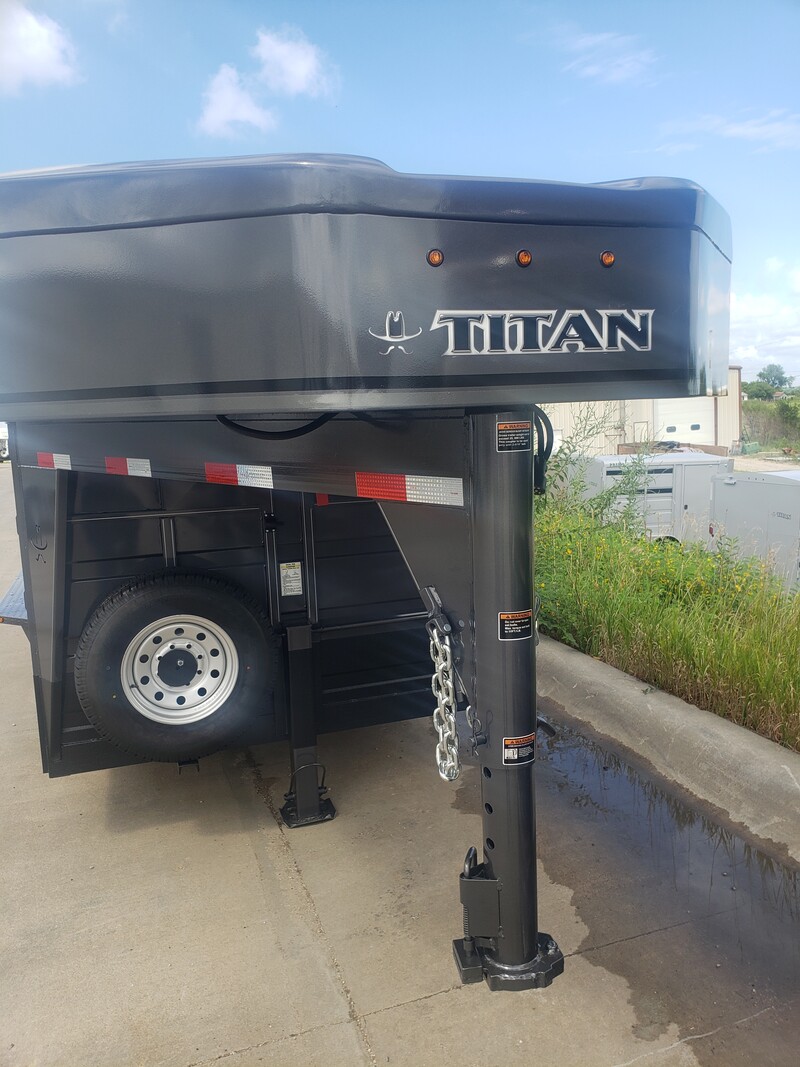

Illuminated Titan Hat Nose Graphic
Illuminated Lucent on Rear Header
Notes
- TRIPLE AXLES RECOMMENDED ON TRAILERS 28' AND ABOVE
- ANY TRAILER OVER 32’ WILL NEED AN APPROVAL AND A QUOTE FROM THE FACTORY
- 24' AND UP HAVE BEEFED UP BACK END
- 26' AND UP HAVE A BEEFED UP STEM
- 28' AND UP HAS BOXED IN COVE
- 28' AND UP HAS THE ESCAPE DOOR MOVED BACK 2'
- STANDARD FEATURES SUBJECT TO CHANGE AT MANUFACTURER'S DISCRETION
- WEIGHTS MAY VARY ACCORDING TO OPTIONS
Optional Features
Sides & Windows
Other Than 54" Sides
Split Sides
Double Deck
Aluminum Tongue and Groove Decking for Double Deck Trailers
Split Escape Door
Bull Package (Cross Members, Uprights & Roof Bows on 12” Centers)
Cross Members only on 12” Centers
Uprights only on 12” Centers
Height & Width Options
7’ Tall
7 ½’ Tall
8' Tall
8 ½’ Tall
9' Tall
7 ½’ Wide
8’ Wide
Lights & Trim
Illuminated Name Plate on Nose
LED Back-Up Lights
Double Tail Lights
Extra Clearance Light
Top Clearance Lights at Rear

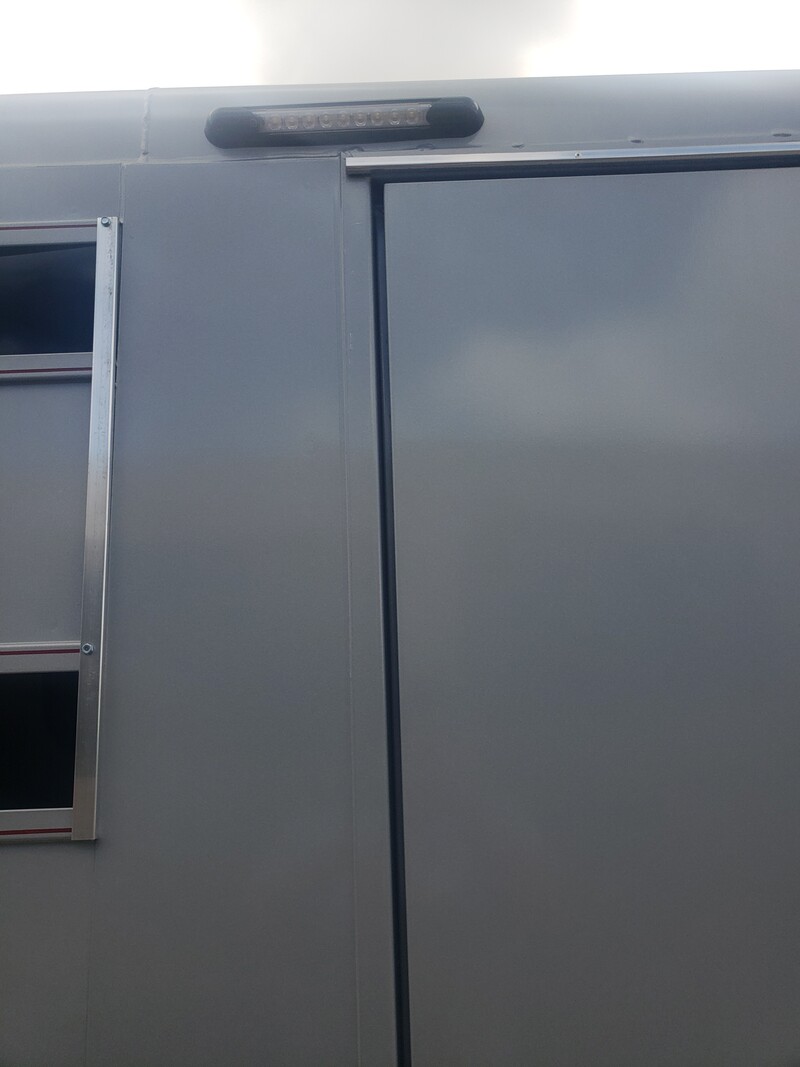

Mid-Mount LED Turn Signals (Per Pair)
6 Prong Plug
Semi Plug with Double Tail Lights
Wire Plug to Receiver Hitch
Extra Elite Shield (Line X Equivalent) Gravel Guard (Per Square Foot)
Doors, Windows, Vents, & Ramps
Extra Escape Door
48" Wide Escape Door
54" Wide Escape Door
Screened Camper Door w/ Vertical Window (Will not work with a Swingout Saddle Rack)
Aluminum Fold Down Rear Ramp w/ Double Doors Above
Aluminum Fold Down Rear Ramp Behind Back Door(s)
4’ Aluminum Side Ramp with Door Above
5' Aluminum Side Ramp with Door Above
6' Aluminum Side Ramp with Door Above
Sliding Vents Under Nose
Vent Package (Sliding Vents Under Nose & Tack Door In The Front)

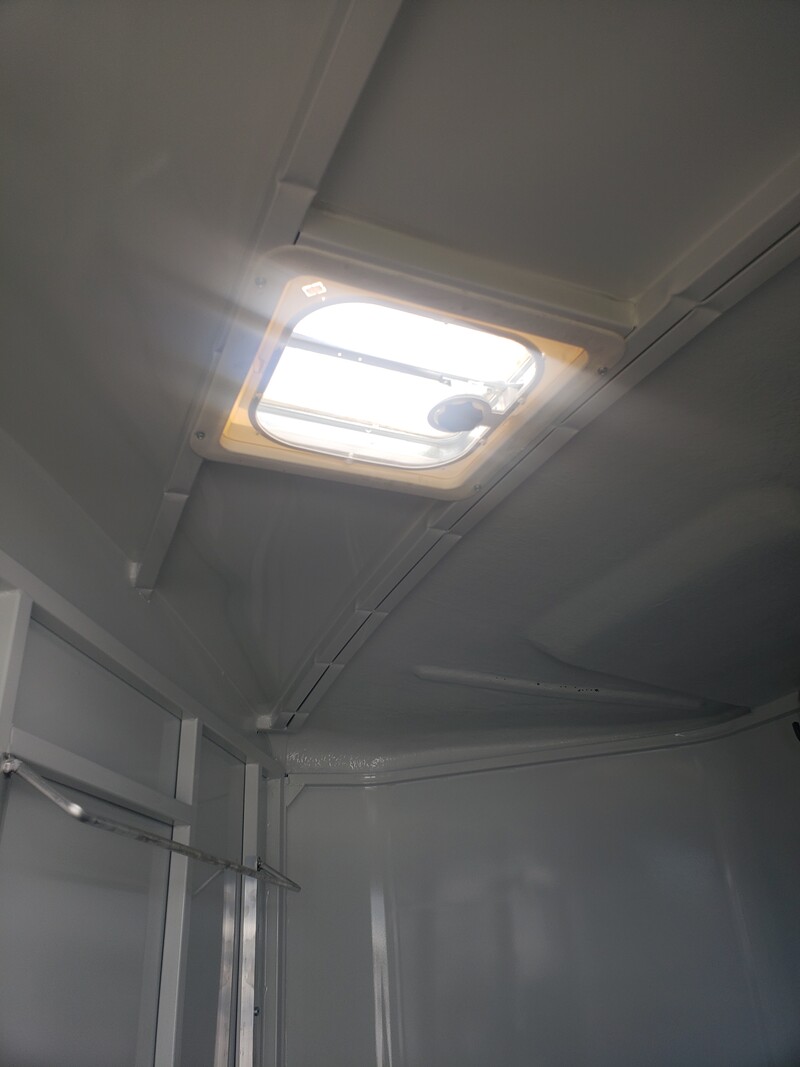

2-Way Pop Up Roof Vent
Dome Style Roof Vent with 12V Fan
Mid Mount Drop Down Feed Door w/ Window and Drop Bars
16”x24” Vertical Window w/Slide in Factory Steel Door
30”x30” Bus Window w/ Slide
12”x24” Bus Window w/ Slide
18”x44” Bus Window w/ Slide
18”x24” Bus Window w/ Slide
14”x34” Bus Window w/ Slide
Escape Window in Nose
Aluminum Options
Brushed Aluminum Fenders
Aluminum Tread Bright Fenders
Aluminum Tread Bright Gravel Guard Package
Center Gate & Back Gate Options
Upgrade to Sliding Center Gate from Standard Center Gate
Extra Center Gate
Extra Sliding Center Gate
Extra Gate Setting
Floating Center Gate (Set on 6" Adjustments - Will Latch Ahead of Escape Door)
Delete Center Gate
Split Nose Gate No Post
Split Nose Gate with Post
One Piece Slatted Back Gate

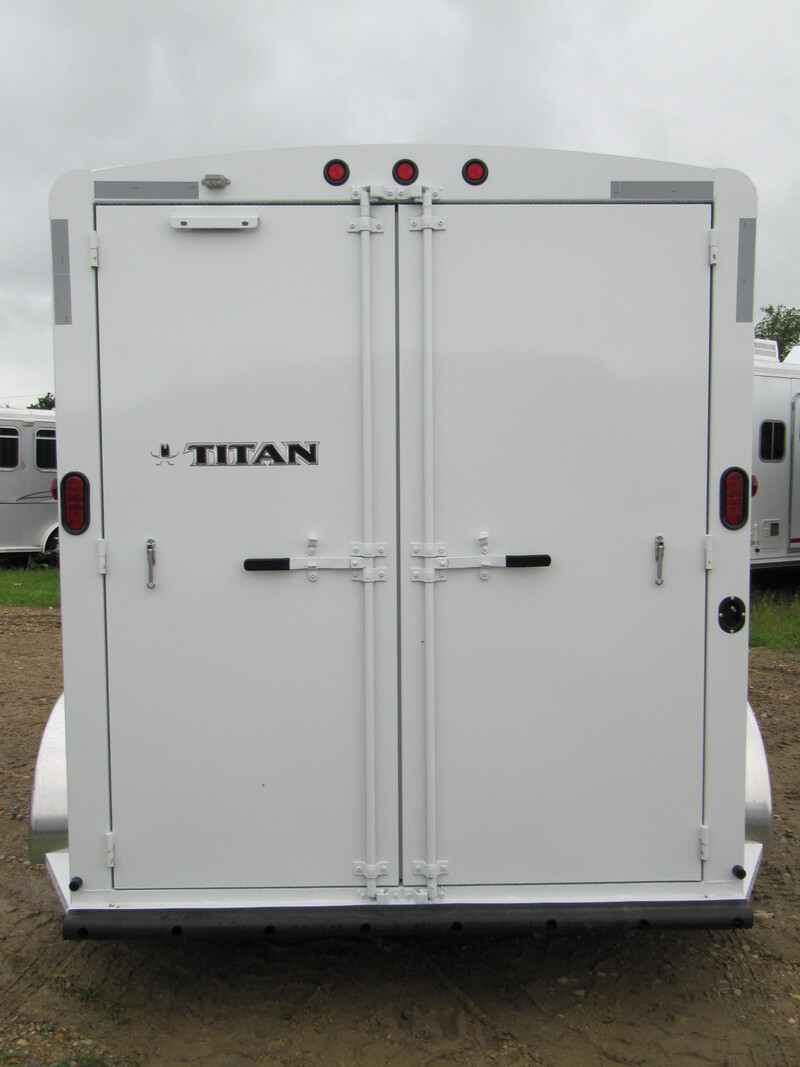

Slatted Double Back Doors w/ Cam Locks and Lockable Hasps
Anti-Sag Block on Center Gate in Open Position
Outside Center Gate Release to Shut Gate
Beef Up Center Gate with Extra Tubing
Beef Up Center Gate with Extra Tubing and Tube Post on Hinge Side
Compartments & Dividers
Permanent Rear Tack w/ Double Back Doors
Collapsible Rear Tack
Mid-Tack Full Width Behind Dress Wall w/ Door
Mid-Tack in Corner of Dress Room w/Door
Feed Manger in Front of Slant Load per Horse (w/ 2 Outside Doors)
Extra Door for Manger (21" x 26")
Oversized Manger Door (34" x 34", Cannot go over fender)
Stud Gate (not telescopic, Slant Center Gate)
Slant Divider
Hang Rubber Mat from Bottom of Divider
Divider Extension
Straight Load Feed Manger w/ Head Divider, 2 Feed Doors, 2 Tack Doors 2-1 Tier Saddle Rack
Straight Divider w/ Butt Bars, Breast Bar, Swinging Head Divider, and Removable Post
Solid Dressing Room Wall w/ Factory Steel Door & Sub-Floored
Swing Wall w/ Sides Enclosed to Front
Bi-Fold Swing Wall w/ Sides Enclosed to Front
Swing Wall w/ Sides Not Enclosed
Bi-Fold Swing Wall w/ Sides Not Enclosed
Axles (Non-Standard Axles may increase lead time)
Spring EZ Lube
Oil Bath Hub (Per Axle)
Single 7000# Torsion EZ Lube
7000# Torsion EZ Lube
Triple 7000# Torsion EZ Lube
8000# Torsion EZ Lube
Triple 8000# Torsion EZ Lube
Electric over Hydraulic Brakes
Disc Brakes in Lieu of Drum Brakes on Electric over Hydraulic Axles

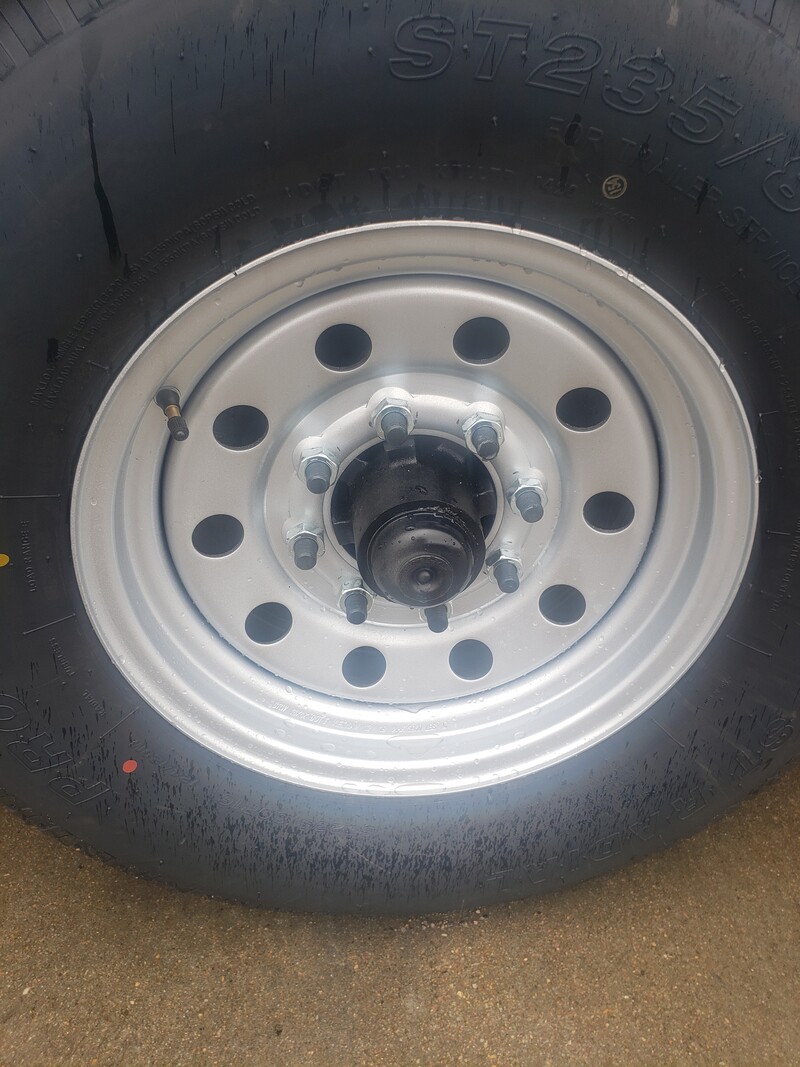

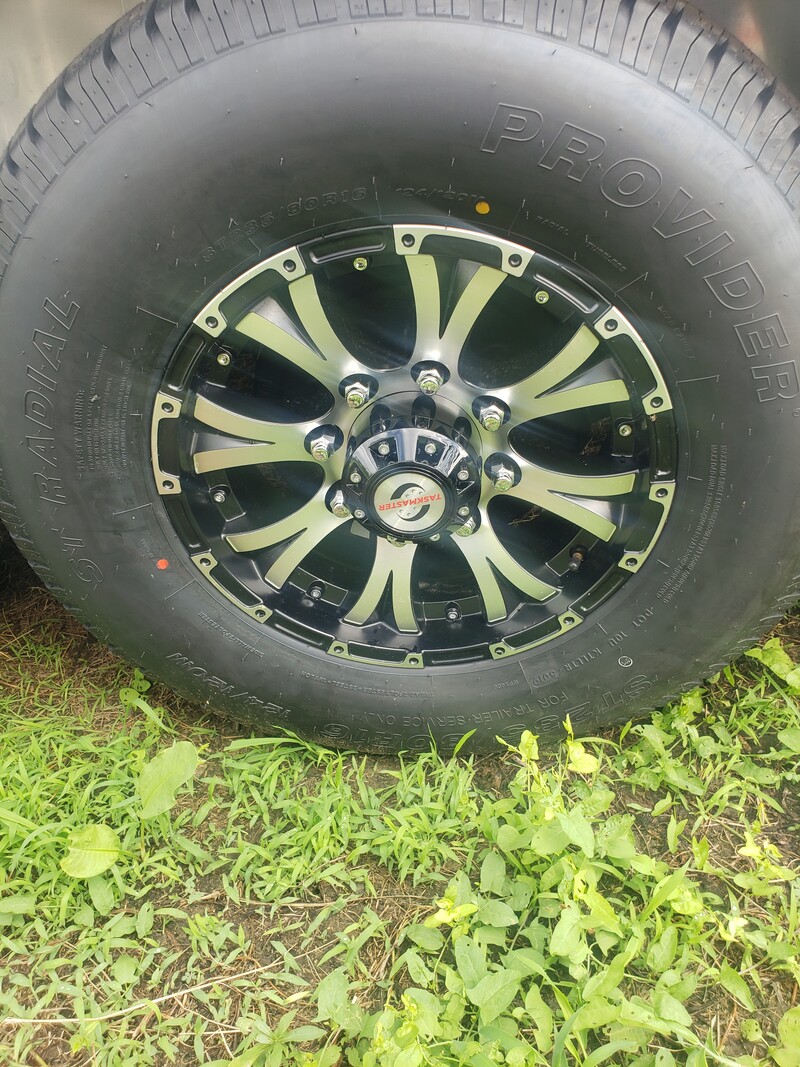

Tires (Goosenecks)

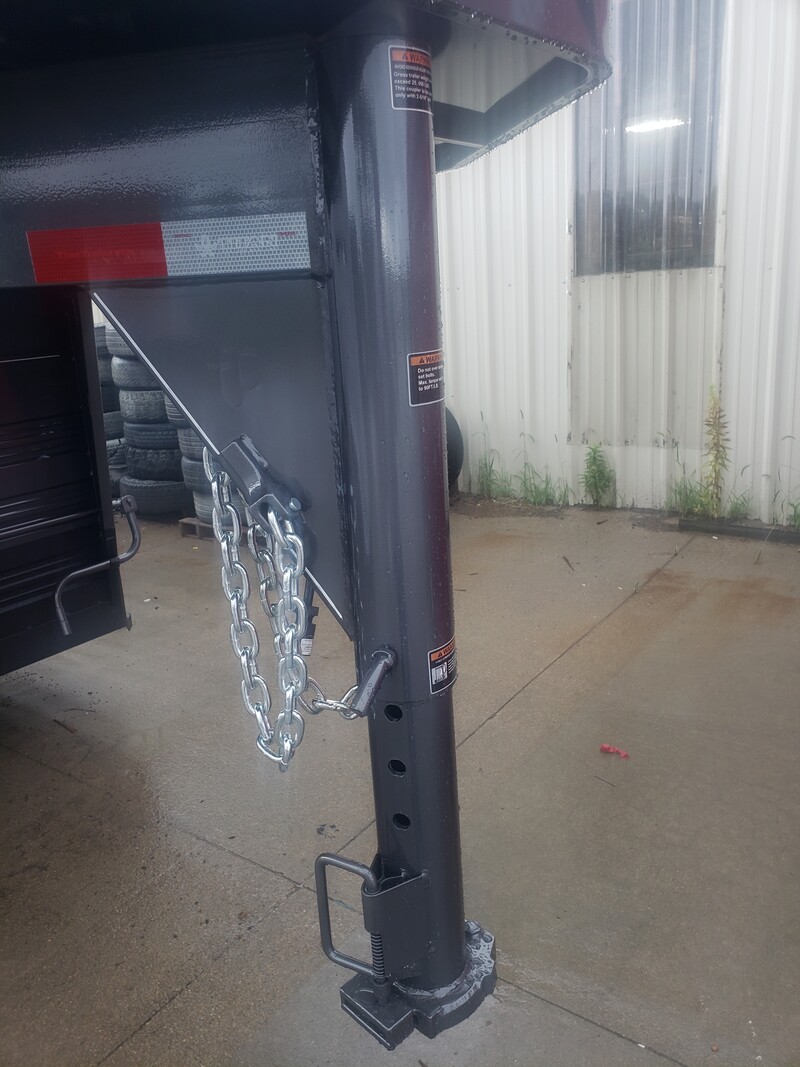

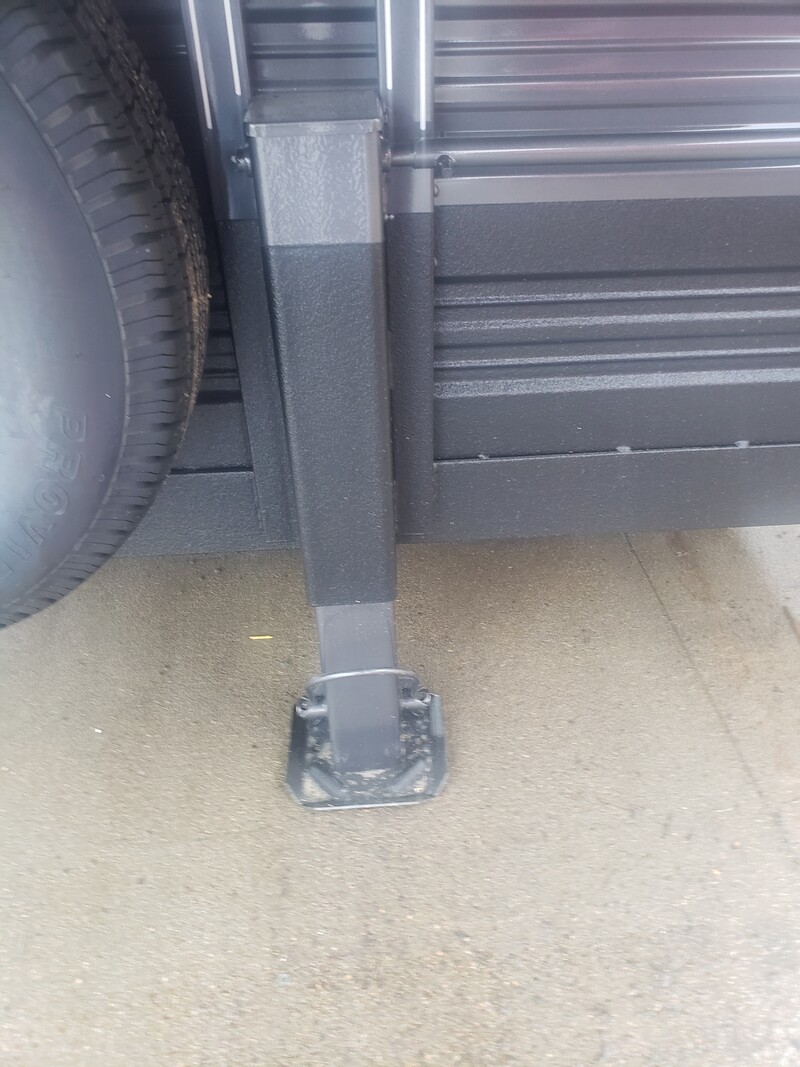

Jacks
Double 12,000# Dual Pin Jacks
2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Double 2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)

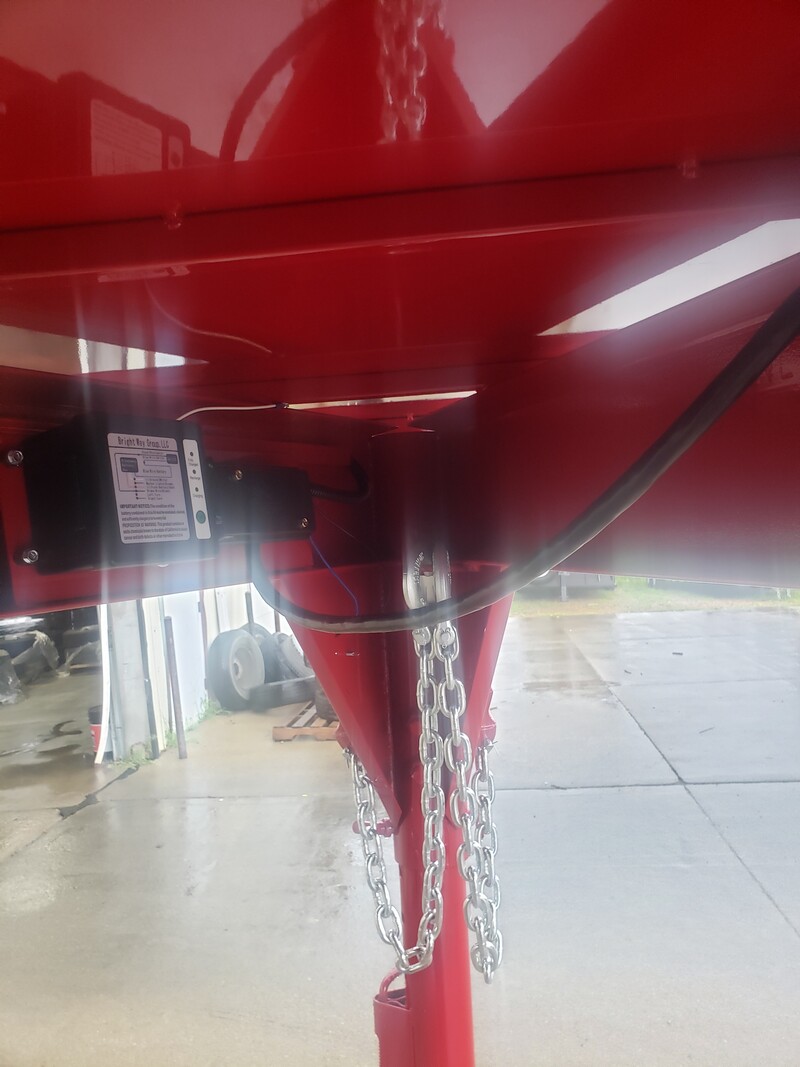

Single Bulldog Velocity Series 12,000# Electric Jack (Includes Battery & Battery Tray)
Double Bulldog Velocity Series 12,000# Electric Jack (Independent Control, Includes Battery and Battery Tray)
Single Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Double Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Flooring Options
Sure Foot Flooring (Rubber Floor System - Self Draining)
Blackwood Rubber Infused Lumber
Rubber Composite Flooring (Includes 12" Cross Members)
Tread Rubber
Rubber Floor Mats
Dressing Room/Tack Room Options
Kick Mat on Sides
2 - Single Tier Slide out Saddle Racks (Straight Load Trailers Only)
3 Tier Saddle Rack
4 Tier Saddle Rack
To Make Saddle Rack Swing Out
Extra Saddle Rack Setting
Swingout Blanket Bar (6 Tier)
Removable Bridle Hook Bar (4 Bridle Hooks)
Extra Bridle Hook
Extra Tie Loop
Extra Blanket Bar
Full Width Boot Box - Oak with Titan Logo
1/2 Boot Box - Oak with Titan Logo
Electrical Package - 30A Cord, Breaker Box and 1 Outlet
Additional Outlets
13,500 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
15,000 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
Carpet Package
Horse/Stock Area Options
Buggy Ramps
Padded Stall
Undercoat Inside Roof
Undercoat Underneath of Trailer
Undercoat Inside Walls 20" Up
Miscellaneous Options
Auto lock Coupler with Cable Release
Tie Rail On Side
Receiver Hitch
Camper Step
Panel Hooks

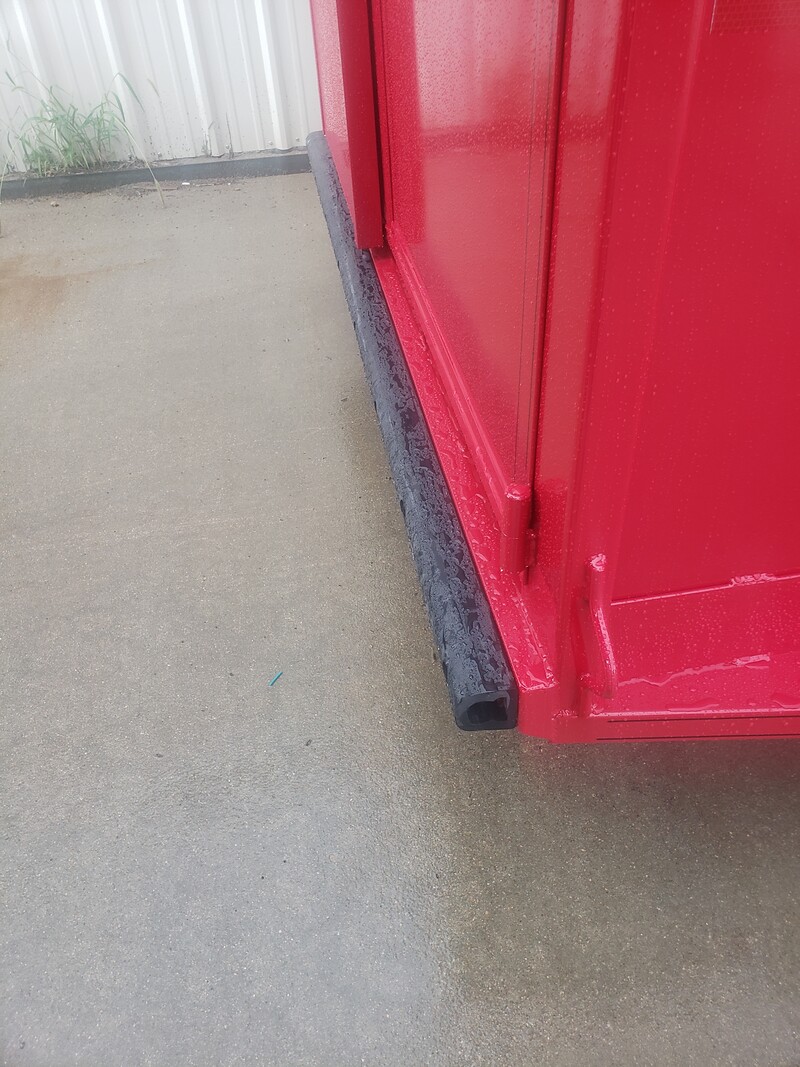

Skid Plate on Rear Bumper
Battery Tray
12 Volt Deep Cycle Battery
Aluminum Battery Box
Plastic Battery Box
Propane Tray
Awning
Block Axles up 2"
Plate/Beefed-Up Rear Corners - Standard on 24' and Above

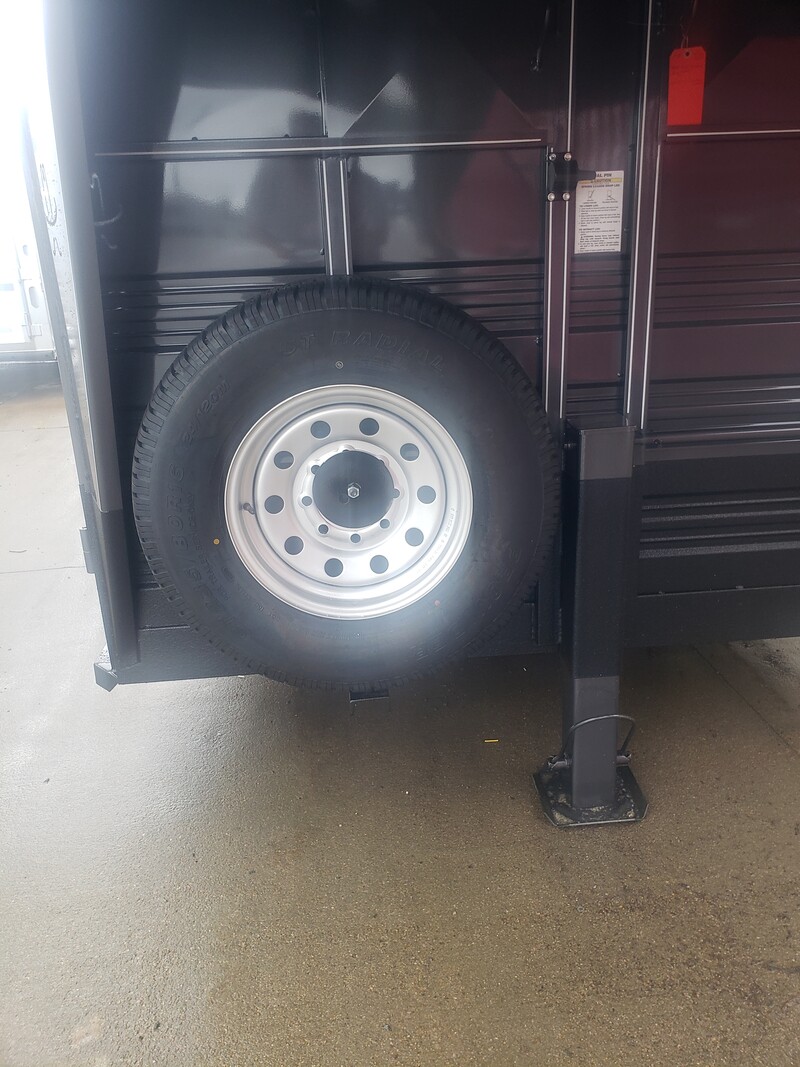

EZ Jack Mounted Under Spare Tire
Fold Up Spare Tire Carrier
